IPTV Background/Customization Console

Overview

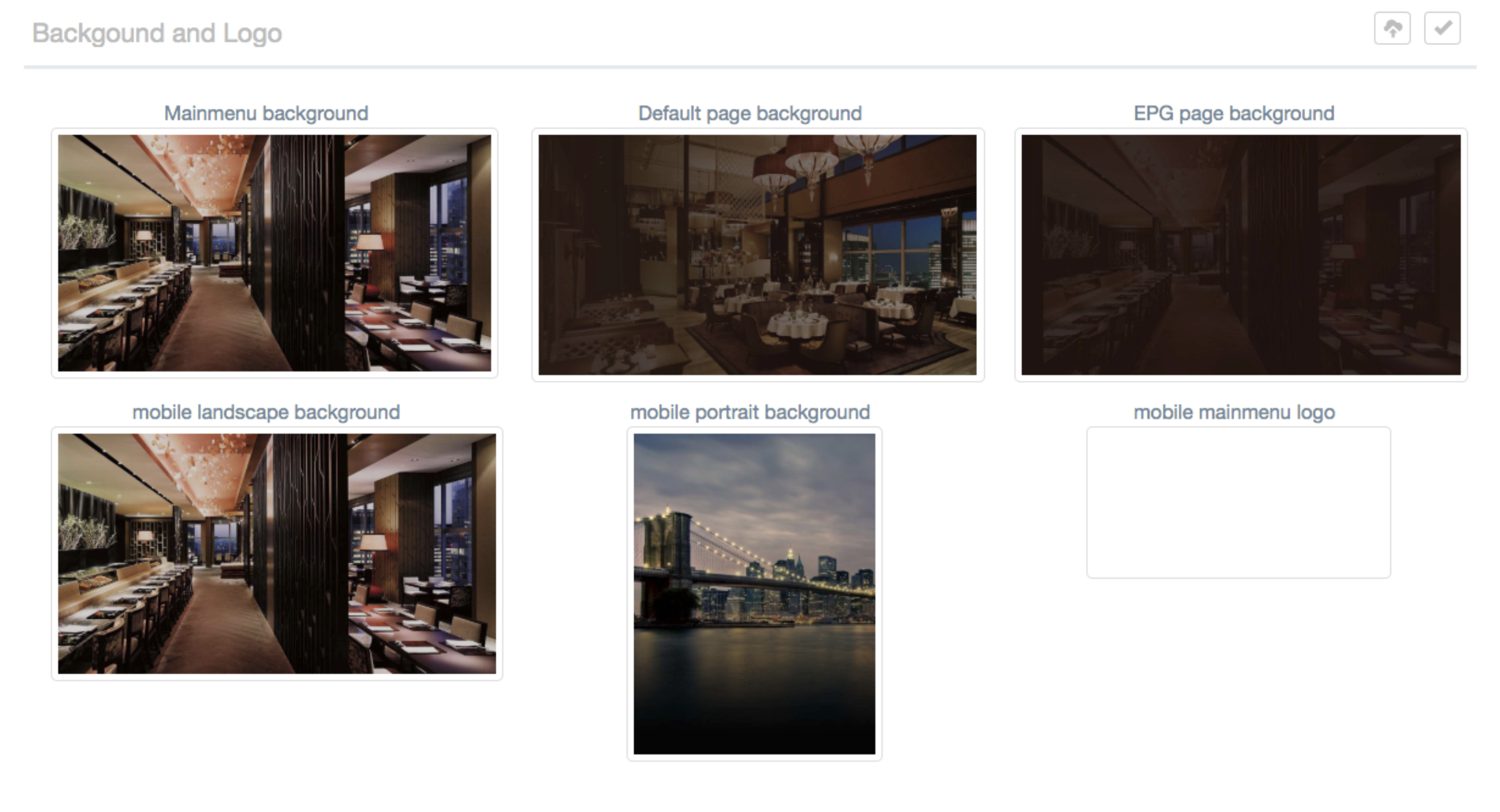

Customization console is for adding or changing Portal background and logo images:

  • Mainmenu background: the background image for the Main Menu

  • Default page background: the background image for all screens except Main Menu and EPG

  • EPG page background: the background image for the EPG screen

  • Mobile landscape background : the background image for mobile client Main Menu in landscape mode

  • Mobile portrait background: the background image for mobile client Main Menu in portrait mode

  • Mobile mainmenu logo: the logo image for mobile client Main Menu

Using Customization console involves:

  • Add or Edit Background or Logo Image

  • Upload Image Files

  • Please remember to save after changes are made.

Add or Edit Background Image

To Add/Edit a Background or Logo:

  1. Double click on the Image or Empty box of the area you wish to modify

  2. Select the new image from the file browser

3. Click Ok

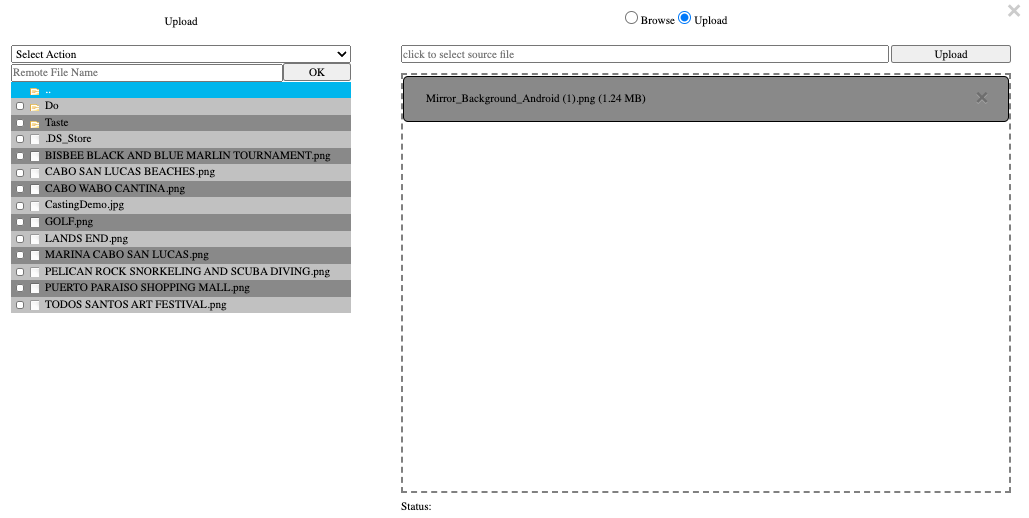

Upload Image Files

To Upload a new Image:

  1. Click the Upload Image button

  2. The upload image window will then show

3. Click on the right side where it says “click to select source file” to browse the local computer for the file to be uploaded

4. On the left side click on the folders to which the image will be uploaded to

5. Click Upload
